How to Choose the Right Coupler for Your Trailer
Choosing a gooseneck coupler is not simply a matter of buying the largest advertised towing capacity. First identify which part of the assembly needs replacement. Then verify the ball diameter, receiver shape and dimensions, retention hardware, adjustment range, gross and vertical ratings, clearance, and installation method.
The correct purchase may be a complete adjustable coupler—or only an inner insert, outer receiver, head, lock, or conversion adapter. Similar-looking parts are not necessarily interchangeable, and the lowest-rated component still limits the towing combination.
This guide is a preliminary shopping, measurement, and installer-handoff framework. It is not a substitute for the current manuals for the exact coupler, trailer, truck-side hitch, ball, or adapter. Structural design, welding, wear limits, maintenance intervals, and operating procedures remain product- and trailer-specific.
What a Gooseneck Coupler Is—and What It Is Not

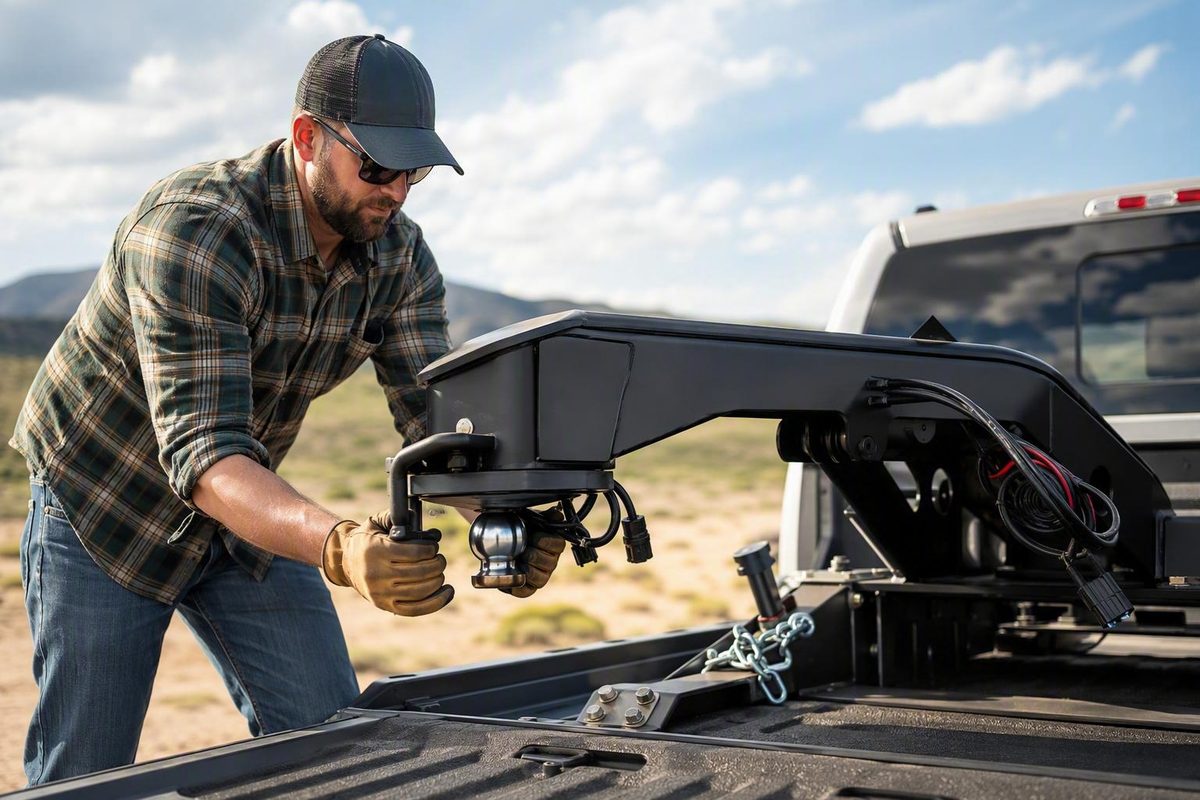

A gooseneck coupler is the trailer-side component that lowers onto and locks around a hitch ball mounted in a pickup bed. The ball is generally positioned over or just forward of the truck’s rear axle. Gooseneck arrangements are commonly associated with livestock, equipment, agricultural, commercial, and flatbed trailers.
The visible assembly may contain:
- Coupler head or ball cup: Fits over the hitch ball.
- Latch or locking plate: Retains the ball inside the coupler.
- Adjustable inner tube or stem: Slides into the trailer’s outer receiver.
- Outer receiver tube: Usually attached structurally to the trailer.
- Adjustment hardware: May include holes, pins, bolts, set screws, or jam nuts.
- Load-bearing pin or bolt: Carries load at the selected adjustment position on designs that use one.
- Safety-chain system: Connects the trailer’s chains to approved truck-side anchors.
- Release handle or cable: Opens the latch on designs equipped with one.
At a high level, coupling means positioning the coupler over the correctly sized ball, lowering it until fully seated, securing the model-specific latch, and connecting the safety chains and electrical lines. The exact latch position, attachment test, chain routing, breakaway connection, and operating order must come from the manuals for the installed equipment.
A fifth-wheel connection is different. A fifth-wheel trailer has a pin box and kingpin that engage jaws or a locking bar in a truck-mounted hitch. A standard gooseneck uses a ball-and-coupler connection. Conversion products can bridge selected configurations, but an ordinary gooseneck coupler, fifth-wheel pin box, and conversion adapter have distinct interfaces and restrictions, as CURT’s mechanism comparison illustrates.
Neither format should be declared universally safer or more stable. Suitability depends on the truck, trailer, hitch, coupling hardware, load, installation, and intended service.
Conceptual diagram: trailer-side gooseneck connection
TRAILER NECK
│
┌─────────────────────┐
│ Outer receiver tube │
│ [adjustment pin] │
│ [set screw/nut] │
└──────────┬──────────┘
│
Adjustable inner tube
│
┌───────┴───────┐
│ Coupler head │── Latch/release mechanism
└───────┬───────┘
▼
Truck-bed ball
─────────────────────────
TRUCK BED
Safety chain ─────┐ ┌───── Safety chain
▼ ▼
Approved truck anchors
This drawing is not an installation specification. Latch orientation, pin location, tube engagement, chain routing, and required hardware vary by product.
First Identify the Product You Actually Need
Catalog pages commonly place complete couplers beside inner tubes, outer receivers, replacement heads, locks, pin boxes, and adapters. The category name alone does not establish what is included.
Product-selection decision tree
-
Is there an intact outer receiver with a removable adjustable stem? - Yes: You may need a compatible inner assembly or insert. - Measure the receiver and identify its retention system before shopping. - Do not assume that another insert of the same general shape will fit. - No: Continue.
-
Is the outer receiver damaged, badly corroded, deformed, or incompatible with the intended insert? - Yes: You may need an outer assembly or complete weld-on coupler. - Treat this as structural work, not a routine insert swap. - No: Continue.
-
Is only the coupler head damaged or worn? - Yes: Determine whether the manufacturer offers a product-specific replacement head and permits head-only service. - A generic head does not supply the receiver, stem, adjustment hardware, or trailer attachment structure. - No: Continue.
-
Does the trailer have no existing gooseneck coupler? - Yes: Look for a complete assembly suitable for integration into that trailer design. - Confirm whether the listing includes inner and outer tubes, head, latch, pins, and adjustment hardware. - Obtain trailer-specific structural requirements. - No: Continue.
-
Are you converting between a fifth-wheel and gooseneck interface? - Yes: Shop in the adapter or replacement pin-box category, not the ordinary coupler category. - Verify compatibility and capacity across the trailer, pin box, hitch, adapter, and truck. - No: Identify the failed component by part number before purchasing.
A “complete coupler” includes only the components explicitly named in its listing. Some assemblies include inner and outer tubes, the head, latch, and load-bearing hardware. Other listings use similar language while supplying only one subassembly.
An inner assembly is the removable or adjustable part that fits inside an existing receiver. Matching “round” with “round” or “square” with “square” is insufficient. Outside dimensions, corner geometry, hole spacing, engagement, adjustment range, retention method, and approved mating receiver all matter.
An outer assembly is commonly a raw structural receiver intended to become part of the trailer. It may require reinforcement, welding, corrosion finishing, and inspection. A head-only product supplies the ball-engaging mechanism but not necessarily the stem, receiver, height adjustment, or installation hardware.
Manufacturer catalogs show why these distinctions matter. Demco separately identifies cast heads, square and round inner assemblies, square and round outer assemblies, and a lock in its gooseneck component catalog. BULLDOG likewise lists complete inner-and-outer-tube couplers alongside inner-tube-only products, a weld-on outer tube, and replacement hardware.
| Category | What it is | What it does not necessarily include |
|---|---|---|
| Complete assembly | The head, tube, adjustment, and retention components named in the listing | Trailer reinforcement, welding, finish repair, or lock |
| Inner assembly | Adjustable insert with a head or ball pocket | Outer receiver or trailer attachment structure |
| Outer assembly | Receiver tube attached structurally to the trailer | Inner stem, head, latch, or adjustment pin |
| Head | Ball-engaging head and listed latch parts | Inner and outer tube system |
| Lock | Theft-deterrent device for specified latch geometry | Coupling components or universal compatibility |
| Pin box | Fifth-wheel trailer interface or specialized replacement | Ordinary adjustable gooseneck receiver system |
| Adapter | Converts one specified interface to another | Universal compatibility or approval |
| Replacement hardware | Listed pin, cover, label, bolt, or latch part | Complete coupler |
Do not compare these categories as equivalent products. A head-only part can be appropriate for a serviceable assembly, but it cannot be compared with a ready-to-install insert or complete weld-on coupler on price alone.
The Pre-Purchase Fitment Worksheet
Record the existing configuration before removing anything. Measurements taken after a damaged insert has been discarded—or after the trailer has been raised, lowered, or unloaded—may not reproduce its operating position.
Fill-in fitment worksheet
| Item to verify | Your measurement or answer |
|---|---|
| Trailer manufacturer, model, and year | ________ |
| Existing coupler manufacturer | ________ |
| Coupler or assembly part number | ________ |
| Required product type | Complete / inner / outer / head / adapter |
| Ball diameter or other connection | ________ |
| Receiver shape | Round / square / other |
| Inner-tube outside dimension | ________ |
| Receiver opening or inside dimension | ________ |
| Outer-tube outside dimension | ________ |
| Existing adjustment-hole spacing | ________ |
| Current installed coupler height | ________ |
| Required adjustment range | ________ |
| Manufacturer-required engagement | ________ |
| Retention method | Pin / bolt / set screws / other |
| Number and location of set screws | ________ |
| Latch or release orientation | ________ |
| Required gross rating | ________ |
| Required vertical-load rating | ________ |
| Straight or offset configuration | ________ |
| Desired offset, if approved | ________ |
| Finish | Raw / painted / powder-coated / other |
| Installation path | Insert / head / welding / conversion |
| Current manual obtained? | Yes / no |
| Manufacturer fitment confirmed? | Yes / no |
A 2-5/16-inch ball is common, not universal. The displayed Dexter assortment includes many 2-5/16-inch products, but also a coupler for a 3-inch ball and a kingpin-related option. Its category also mixes complete couplers, heads, inserts, offsets, and an adapter, so verify the exact interface and product type in the Dexter catalog.
For a round receiver, measure diameter rather than circumference. For a square receiver, measure the relevant inside and outside dimensions and inspect the corner profile. Retailer guidance describes a 4-inch-outside-diameter inner tube and 4.5-inch-outside-diameter outer tube as common for round couplers, but that is not a universal fit standard.
Identify exactly how the current stem is retained. Possibilities include:
- A load-bearing pin through aligned adjustment holes
- A bolt through the outer and inner tubes
- One or more set screws with jam nuts
- A pin combined with set screws
- Product-specific wedges, locking plates, or clamps
- A proprietary retention mechanism
Similar-looking systems may carry loads differently. Do not substitute a set screw for a required pin, add an adjustment hole, or assume that an existing hole is approved for a replacement insert.
Before removing an adjustable insert, record its installed height. Quick Coupler’s product-specific instructions, for example, measure from the bottom of the trailer receiver tube to the bottom of the existing coupler and transfer that position to the replacement. The same instructions restrict installation to designated receiver sizes and require enough engagement for both set screws to secure the insert, illustrating why engagement and retention rules must come from the exact product instructions.
There is no supported universal insertion depth for every gooseneck coupler. Obtain the current requirement for the exact part and ensure that every required pin, bolt, set screw, jam nut, or locking feature can be installed as directed.
Photograph before disassembly
Take clear photographs of:
- The complete coupler and trailer neck
- The head, ball cup, and latch
- Any ball-size marking
- The capacity plate or label
- The receiver opening
- Adjustment holes and their spacing
- Pins, bolts, set screws, jam nuts, and covers
- The installed latch or release orientation
- Welds and reinforcement around the outer receiver
- Manufacturer labels and part numbers
- The trailer identification plate
- Wiring, chains, and nearby clearance points
Do not drill new holes, reverse the coupler, remove structural material, or change its orientation unless current instructions for that exact product and trailer expressly permit the change.
Choose Capacity by the Whole Towing System, Not the Biggest Number
The loaded trailer must remain within the applicable limit of every component in the combination. A coupler rating does not override a lower rating on the truck, trailer, truck-mounted hitch, ball, adapter, receiver structure, or another load-bearing component.
Advertised gross towing capacity and vertical-load capacity are separate specifications. Do not treat them as interchangeable. If a listing gives a gross figure but omits its vertical rating, record the vertical rating as unavailable until the manufacturer supplies it.
Capacity verification table
| Component | Gross or trailer-weight limit | Vertical or other relevant limit | Verified source |
|---|---|---|---|
| Tow vehicle | ______ | ______ | ______ |
| Truck-mounted hitch | ______ | ______ | ______ |
| Hitch ball | ______ | ______ | ______ |
| Coupler | ______ | ______ | ______ |
| Adapter, if used | ______ | ______ | ______ |
| Trailer | ______ | ______ | ______ |
| Other structural limitation | ______ | ______ | ______ |
| Lowest applicable limit | ______ | ______ | — |
For example, a coupler advertised at 30,000 pounds does not create a 30,000-pound towing system if the hitch ball, truck, trailer, adapter, or truck-mounted hitch has a lower applicable rating. The lower limit still governs. A higher-rated head likewise cannot increase the capacity of the receiver tube or trailer structure.
Selected supplied catalog listings advertise gross capacities from 20,000 to 40,000 pounds, with many conventional examples between approximately 24,000 and 30,000 pounds. These are manufacturer or retailer claims for individual products, not independent proof of the capacity of a buyer’s complete combination.
A historical Atwood manual provides a useful model-specific example. Three identified 2-5/16-inch coupler models were rated at 25,000 pounds maximum gross vehicle weight and 5,000 pounds vertical load. The guide was effective November 21, 2007, and marks multiple covered products as discontinued, so its capacities, welding procedures, torque values, and maintenance schedule must not be generalized to modern or unrelated couplers. It also directs users not to exceed the lowest marked capacity among the vehicle, trailer, hitch, ball, and coupler in the Atwood installation and operation manual.
Before selecting capacity:
- Establish the trailer’s loaded operating weight rather than relying only on empty weight.
- Obtain the coupler’s current gross and vertical ratings.
- Verify the ball’s diameter and ratings.
- Verify the truck-mounted hitch and its installation rating.
- Check the trailer manufacturer’s limits.
- Include every adapter, pin box, or conversion component.
- Apply the lowest relevant limit.
Terms such as gross towing capacity, vertical load, pin weight, tongue weight, and trailer rating identify different limits or conditions. Do not substitute one for another. If a listing is incomplete or uses unfamiliar terminology, request the current specification for the exact part number.
Compare Tube, Latch, Offset, and Ride-Control Designs
Once the required component and ratings are known, compare designs by fitment and operating implications—not by appearance.
Round versus square
Round and square couplers are both available in multiple capacities and configurations. The supplied evidence does not establish that either shape is inherently stronger, safer, or more stable.
Compare:
- Exact receiver and insert dimensions
- Corner or diameter geometry
- Adjustment range and increment
- Pin, bolt, or set-screw arrangement
- Head and latch availability
- Gross and vertical ratings
- Raw or finished construction
- Replacement-part support
- Approved installation method
A square insert cannot fit a round receiver, and nominally similar round products may use different diameters or retention patterns.
Straight versus offset
A straight coupler keeps the ball interface broadly aligned with the existing stem geometry. An offset design moves the interface by a stated distance. Supplied listings include 5-, 9-, and 10-inch offsets, but those figures are product features—not guarantees of short-bed compatibility.
An offset can create more clearance in one area while raising questions elsewhere:
- Cab-to-trailer clearance
- Bed-rail and tailgate clearance
- Trailer-overhang geometry
- Approved tube orientation
- Trailer structural loading
- Handling characteristics
- Manufacturer approval and warranty
- Available height adjustment
Evaluate the entire truck-and-trailer geometry rather than buying the largest available offset.
Manual, self-latching, and lockable heads
A manual latch requires the operator to move and secure the mechanism as instructed. A self-latching or EZ-Latch-style design is intended to close through its specified coupling action. A lockable coupler includes a designated locking point or accepts a compatible lock.
These terms describe operating features, not comparative proof of safety. Every design still requires full seating, a secured latch, and the manufacturer’s positive attachment check.
Security is separate from coupling. A compatible lock may deter unauthorized use, but lock geometry varies. A lock containing the correct ball diameter can still lack the necessary pin location or latch interface. Match it to the exact coupler head.
Conventional, cushioned, torsion, spring, and air designs
Other products incorporate cushioning, torsion elements, coil springs, or air systems. Manufacturers market these designs for ride or shock management, but the supplied evidence does not include independent testing that quantifies effects on comfort, braking, stability, handling, or component life.
Treat them as distinct assemblies requiring additional checks:
- Stem and receiver dimensions
- Gross and vertical ratings
- Maintenance and consumable parts
- Operating pressure or adjustment, if applicable
- Space around the trailer neck
- Orientation and articulation limits
- Manufacturer approval
- Replacement-component availability
Shocker’s catalog separates traditional and air products, round and square stems, straight and 9-inch-offset configurations, 2-5/16-inch and 3-inch ball options, kingpin products, and replacement inner and outer stems. That range reinforces the need to compare exact configurations rather than a general product family in the Shocker category.
Finish and fabrication
A raw-steel outer tube may be intended for welding and later corrosion protection. A painted or powder-coated product may instead be a finished replacement insert or assembly. Color alone does not establish whether welding is permitted.
Obtain the required post-installation corrosion treatment from current instructions.
Design comparison matrix
| Design | Intended problem | Fitment checks | Installation implications | Evidence limitations | General catalog tier |
|---|---|---|---|---|---|
| Conventional straight | Standard ball connection and height adjustment | Tube size, ball, ratings, range, retention | Insert replacement or structural welding | No universal cross-brand fit | Lower |
| Round adjustable | Fit a specified round receiver | Exact diameter, holes, pins, set screws | Orientation only as expressly approved by the exact manual | Shape does not prove strength | Lower |
| Square adjustable | Fit a specified square receiver | Width, corners, holes, retention | Shape constrains orientation | Shape does not prove strength | Lower |
| Offset | Change ball-to-stem geometry | Offset, cab, rails, tailgate, structure | May require model-specific orientation | No offset guarantees clearance | Middle to premium |
| Manual latch | Direct operator-controlled latching | Ball size and latch access | Operator closes and secures latch | No comparative safety testing supplied | Varies |
| Self-latching | Simplify model-specific coupling action | Ball size, release operation, orientation | May require cable or handle routing | Still requires attachment verification | Varies |
| Lockable | Add theft deterrence | Exact lock and latch geometry | May add a sleeve or lock hardware | Not universally compatible | Varies |
| Cushioned or torsion | Incorporate resilient movement | Space, ratings, receiver, maintenance | More specialized assembly | No independent performance data supplied | Middle to premium |
| Coil-spring pin box | Specialized fifth-wheel conversion | Pin-box pattern, hitch, vertical load | Not an ordinary coupler replacement | Compatibility is model-specific | Premium |
| Air assembly | Air-based movement management | Space, pressure, stem, ratings | Additional setup and maintenance | Marketing claims are not independent tests | Premium |
The price tiers are only broad catalog groupings. They are not market benchmarks or evidence of comparative quality.
Adjustment, Level Towing, and Clearance Checks
An adjustable gooseneck coupler should provide enough range to set the loaded trailer level while remaining within every approved engagement, adjustment-hole, and retention limit. Maximum extension is not automatically an acceptable operating position.
Published ranges vary. Selected RAM listings provide 8 inches of adjustment; selected complete BULLDOG models span approximately 7 or 8 inches; and the historical Atwood examples include up to 10 inches. These product-specific figures show why buyers must verify minimum height, maximum height, adjustment increments, and required engagement for the exact model.
Measure using the actual truck, hitch ball, tire configuration, and expected trailer load whenever practical.
Clearance worksheet
| Clearance item | Unloaded | Loaded or operating condition | Minimum observed |
|---|---|---|---|
| Trailer coupler height | ______ | ______ | ______ |
| Trailer level front-to-rear? | Yes / no | Yes / no | — |
| Overhang-to-bed-rail gap | ______ | ______ | ______ |
| Cab-to-trailer-overhang distance | ______ | ______ | ______ |
| Tailgate clearance | ______ | ______ | ______ |
| Coupler-to-bed clearance | ______ | ______ | ______ |
| Straight-line safety-chain slack | ______ | ______ | ______ |
| Wiring and breakaway-line slack | ______ | ______ | ______ |
| Controlled left-turn clearance | ______ | ______ | ______ |
| Controlled right-turn clearance | ______ | ______ | ______ |
| Uneven-articulation clearance | ______ | ______ | ______ |
Check the cab, bed rails, tailgate, trailer overhang, coupler mechanism, safety chains, electrical cable, breakaway line, and intended turning path. Etrailer recommends at least 6 inches between the bottom of the trailer overhang and the top of the bed rails, but this is retailer guidance rather than a universal manufacturer specification; its answers also show that orientation, set-screw arrangements, welding, and offsets vary by model in its installation Q&A.
A static check on level pavement is only the beginning. Turning changes cab and overhang clearance, while uneven ground can reduce bed-rail or tailgate clearance as the truck and trailer articulate. Conduct the final controlled check under the procedures supplied by the truck, trailer, hitch, and coupler manufacturers.
Do not assume that an offset solves every short-bed problem. It can increase cab clearance while changing relationships involving the tailgate, rails, chains, receiver structure, adjustment range, or approved load path. Confirm the proposed offset and orientation before purchase.
Replacement and Installation: Insert Swap or Structural Welding?
There are four distinct installation paths. Determine which one applies before deciding whether the work is suitable for an owner or requires structural fabrication.
1. Replacing a compatible removable insert
An insert swap may be relatively contained when the existing receiver is sound and the manufacturer approves the replacement.
At a high level:
- Stabilize the trailer and support the old insert.
- Record the original installed height.
- Confirm the receiver’s exact shape and dimensions.
- Match the approved retention system and mating components.
- Insert the replacement to the required engagement depth.
- Orient the latch or release mechanism as instructed.
- Install and secure every specified pin, bolt, set screw, and jam nut.
- Set the trailer height within the approved range.
- Complete the manufacturer’s post-installation inspection and coupling checks.
This is bounded guidance, not a universal procedure. Do not reuse damaged hardware or improvise a retaining system. If the insert binds, is visibly misaligned, or cannot accept every required fastener, stop rather than forcing it into place.
Quick Coupler provides a product-specific illustration: its instructions cover designated receivers for 4-inch round, 4-inch square, or 4.5-inch square adjustable couplers; specify a 2-5/16-inch ball; and position the locking arm on the driver’s side for the release cable. Those requirements apply to that product and must not be transferred to unrelated couplers.
2. Replacing a product-specific head
A head-only replacement is appropriate only when the remaining stem and receiver are serviceable and the manufacturer permits that repair.
Verify:
- Exact head and assembly part numbers
- Approved attachment method
- Ball diameter
- Latch orientation
- Included and reusable hardware
- Gross and vertical ratings
- Wear criteria for the mating stem
- Required post-assembly inspection
A replacement head does not repair a bent insert, enlarged adjustment hole, deformed receiver, cracked weld, or damaged trailer structure.
3. Welding an outer receiver or complete coupler
Replacing an outer receiver or integrating a complete coupler is structural work. It can involve removing the existing assembly, positioning the new load path, reproducing or redesigning reinforcement, welding to the trailer neck, restoring corrosion protection, and inspecting the completed structure.
Etrailer states that the replacement gooseneck couplers it sells are intended to be welded by a qualified welder. The historical Atwood manual also required welding and trailer-specific reinforcement for its identified models. Neither source supports a universal weld size, filler material, current setting, gusset design, tube engagement, orientation, or inspection method for every trailer.
Do not reuse the detailed Atwood welding procedure as a generic fabrication specification. It is dated, model-specific, associated with discontinued equipment, and includes malformed extracted text. Current coupler instructions and trailer-specific structural requirements control.
Professional installation is appropriate when the work involves:
- Cutting off an outer receiver
- Welding to the trailer neck or frame
- Replacing or designing gussets
- Repairing cracked or distorted structure
- Uncertain material type or thickness
- Unknown load paths
- A coupler conversion
- Ambiguous fitment or orientation
- Manufacturer-required structural inspection
4. Installing a conversion component
A fifth-wheel-to-gooseneck or gooseneck-to-fifth-wheel conversion changes the towing interface rather than merely replacing an ordinary coupler. Confirm compatibility and ratings with every affected manufacturer. A part that physically connects can still be unapproved for the trailer, pin box, hitch, adapter, or load.
Do not cut, drill, weld, reverse, or adapt a product merely because the parts appear to align. Obtain current written instructions and approval first.
Installation handoff checklist
Give the installer:
- [ ] Trailer manufacturer, model, year, and identification
- [ ] Existing coupler and receiver part numbers
- [ ] Replacement component part number
- [ ] Current manufacturer manual
- [ ] Confirmed ball diameter
- [ ] Receiver and insert measurements
- [ ] Gross and vertical ratings
- [ ] Trailer loaded-weight information
- [ ] Intended loaded ride height
- [ ] Required coupler orientation
- [ ] Retention-hardware specification
- [ ] Manufacturer-approved reinforcement requirements
- [ ] Finish-removal and corrosion-repair requirements
- [ ] Required weld or structural inspection method
- [ ] Installer’s work and parts documentation
- [ ] Final coupling and clearance test record
What Gooseneck Couplers Cost
A head-only listing cannot be compared directly with a complete adjustable assembly, offset insert, torsion unit, air assembly, or conversion pin box.
The following are page-listed examples reviewed August 15, 2026, not current quotes or a complete market benchmark. Verify the exact configuration, availability, freight, tax, fabrication, finishing, inspection, and installation cost immediately before ordering.
- Dexter displayed RAM GCPN25000, a listed 25,000-pound round coupler, at $202.98; RAM GCPN30000, a listed 30,000-pound round coupler, at $236.37; and RAM GCSQ25000, a listed 25,000-pound square coupler, at $255.51.
- Reese displayed Demco 18332-81, a head-only assembly, at $89.95; B&W BW-4250, an inner-tube-only locking coupler, at $340; B&W BW-4200, a 10-inch-offset coupler, at $399; and GEN-Y GH-7082, a listed 30,000-pound torsion-flex coupler, at $1,199.95. These are materially different components, not direct value comparisons, as the Reese category demonstrates.
- CURT displayed part 25030, a listed 30,000-pound round adjustable coupler, at $244.95, and part 25040, a listed 30,000-pound square coupler, at $293.95 in its coupler catalog.
- Shocker displayed selected 30,000-pound air products from $1,349.99. “From” pricing can change with configuration.
A higher price does not independently establish better towing performance, durability, comfort, or suitability.
Displayed prices may differ because of:
- Head-only versus complete-assembly contents
- Inner versus outer assembly
- Straight versus offset construction
- Manual versus specialized latch hardware
- Conventional versus torsion or air construction
- Raw versus finished steel
- Temporary sale pricing
- Configuration-dependent “from” pricing
- Shipping restrictions
- Changing availability
- Included or excluded installation hardware
- Excluded welding, finishing, and inspection
Total-installed-cost worksheet
| Cost item | Estimated | Confirmed |
|---|---|---|
| Coupler or component | $______ | $______ |
| Freight or oversized shipping | $______ | $______ |
| Tax | $______ | $______ |
| Removal of old assembly | $______ | $______ |
| Welding or fabrication | $______ | $______ |
| Reinforcement materials | $______ | $______ |
| Replacement pins or hardware | $______ | $______ |
| Corrosion protection or paint | $______ | $______ |
| Compatible coupler lock | $______ | $______ |
| Lubricant and maintenance supplies | $______ | $______ |
| Structural or installer inspection | $______ | $______ |
| Clearance correction or related work | $______ | $______ |
| Total installed cost | $______ | $______ |
Do not rank couplers by price, displayed popularity, or retailer ratings. Begin with compatibility and verified ratings, then compare costs only among products that pass those requirements.
Coupling, Pre-Tow Inspection, and Maintenance
The exact operating procedure must come from the current manual for the installed coupler. The following lists organize a preliminary inspection; they are not exhaustive and do not replace model-specific latch, lubrication, torque, attachment-test, or wear instructions.
At a general level, couple on stable, level ground where practical and secure the trailer against unintended movement. Align the correctly sized ball under the head, lower the coupler until fully seated, close and secure the latch, and connect the chains, electrical cable, and breakaway line before retracting the jacks. The historical Atwood manual uses that general sequence for its covered models, but its exact chocking, jack-test, lubrication, and torque procedures remain limited to those models.
After installation, confirm that the chains permit the intended turn without dragging and that wiring cannot pull tight or contact damaging surfaces. Test truck-to-trailer clearance through the approved controlled-turning procedure. Lippert’s truck-side post-installation hitch guidance similarly calls for smooth seating, suitable chain movement, turning-clearance checks, ball lubrication, and inspection of truck-side attachment hardware and structure.
Lubricate the ball and designated coupler surfaces only with the lubricant specified for the installed products. Inspect the trailer-side coupler under its own manual for corrosion, deformation, cracks, loose hardware, abnormal play, and model-specific torque points.
The 2007 Atwood guide specified monthly lubrication for one identified model and a 100-ft-lb stem-bolt check for another. Those are historical, model-specific examples—not a schedule or torque specification for other couplers.
The supplied evidence does not establish universal wear limits or replacement intervals. Stop using the assembly and obtain qualified inspection when the latch will not secure, the correct ball will not seat fully, required hardware will not align or remain tight, a load-bearing tube is deformed, a structural weld is cracked, or the connection develops unexplained play.
Before every tow
- [ ] Verify the installed ball is the specified diameter and is visibly serviceable.
- [ ] Inspect the ball cup and latch for debris, wear, or damage.
- [ ] Inspect the inner tube, outer receiver, adjustment holes, and visible welds.
- [ ] Confirm every required pin, clip, bolt, set screw, and jam nut is present and secured.
- [ ] Lower the coupler fully onto the ball.
- [ ] Close and secure the model-specific latch.
- [ ] Perform the manufacturer’s positive attachment check.
- [ ] Connect both safety chains to the approved anchors.
- [ ] Connect the electrical cable and breakaway line as directed.
- [ ] Test required trailer lighting.
- [ ] Confirm chain and cable slack permits turning without dragging.
- [ ] Check cab, overhang, tailgate, bed-rail, and coupler clearance.
- [ ] Confirm the loaded trailer attitude is within the approved setup.
Periodic owner maintenance
- [ ] Clean the ball interface and designated moving surfaces.
- [ ] Apply the manufacturer-specified lubricant.
- [ ] Inspect the latch, pins, clips, bolts, set screws, and jam nuts.
- [ ] Look for rust, deformation, fatigue indicators, and abnormal wear.
- [ ] Inspect the receiver and accessible structural welds.
- [ ] Verify manufacturer-specified torque points at the required intervals.
- [ ] Keep labels and capacity markings readable.
- [ ] Inspect safety chains, attachment points, wiring, and breakaway components.
- [ ] Confirm the adjustment remains appropriate for the loaded trailer.
- [ ] Record maintenance and replaced components.
Conditions requiring professional inspection
- [ ] Cracked or suspect structural weld
- [ ] Bent, crushed, or deformed inner or outer tube
- [ ] Elongated adjustment hole
- [ ] Latch that will not close or remain secured
- [ ] Coupler that binds on the specified ball
- [ ] Fasteners that repeatedly loosen
- [ ] Unexplained movement between inner and outer tubes
- [ ] Significant corrosion or apparent material loss
- [ ] Impact, jackknife, overload, or coupling failure
- [ ] Unknown coupler identity or unreadable rating
- [ ] Proposed drilling, cutting, welding, reversal, or conversion
- [ ] Any uncertainty about structural fitment or capacity
Frequently Asked Questions
Are all gooseneck couplers made for a 2-5/16-inch ball?
No. A 2-5/16-inch ball is common among conventional gooseneck couplers, but selected products use a 3-inch ball, while related catalog categories may include kingpin or conversion configurations.
Read the ball-size marking on the existing coupler and verify the replacement part number. Do not rely on the category name, apparent head size, trailer capacity, or stem dimensions.
Is a round or square gooseneck coupler better?
Neither shape is inherently better based on the supplied evidence. Round and square products are both offered in multiple capacities, finishes, adjustment ranges, latch types, and component configurations.
Choose by exact receiver dimensions, approved mating components, retention hardware, gross and vertical ratings, adjustment range, installation requirements, and parts availability. Shape is a fitment characteristic, not sufficient evidence of strength or stability.
Will an offset gooseneck coupler solve short-bed cab-clearance problems?
Not necessarily. An offset changes the ball-to-stem geometry and may increase clearance at one point, but no 5-, 9-, or 10-inch offset guarantees compatibility with every short-bed truck and trailer.
Measure cab, overhang, bed-rail, tailgate, chain, wiring, and turning clearances. Account for uneven articulation and confirm that the proposed offset and orientation are approved for the trailer and coupler.
Can I replace only the adjustable inner tube?
Possibly, if the outer receiver is structurally sound and the replacement insert is approved for it. Match the receiver shape, exact dimensions, hole pattern, retention system, ball size, adjustment range, required engagement, orientation, and ratings.
Do not assume inserts are interchangeable because both are described as 4-inch, round, or square. Do not drill new holes or substitute retention hardware without current written approval.
How often should a gooseneck coupler be greased and inspected?
Inspect the connection before every tow and follow the current manufacturer’s schedule for lubrication and detailed maintenance. Lubricant type, grease points, torque checks, service intervals, and wear criteria vary by model.
Older manuals may provide monthly schedules or specific torque values for identified products, but those instructions must not be generalized. If the current manual is unavailable, identify the coupler by part number and obtain manufacturer guidance before establishing a maintenance procedure.
Final Purchase Gate
Do not order until you can identify all of the following:
- The required component type: complete assembly, inner insert, outer receiver, head, or adapter
- The exact ball diameter or other connection
- The receiver shape and measured dimensions
- The approved retention method
- The available and required adjustment range
- The manufacturer-required tube engagement
- The coupler’s current gross and vertical ratings
- The lower limits of the truck, trailer, hitch, ball, and any adapter
- Cab, bed-rail, tailgate, overhang, chain, wiring, and turning-clearance needs
- Whether the job is an insert swap, head replacement, structural installation, or conversion
- The current manuals and written fitment confirmation for the selected parts
The lowest-rated applicable component governs the towing combination. Structural modification requires current product- and trailer-specific instructions plus qualified work. Confirm the final selection with the coupler and trailer manufacturers before installation.
