The Deutsch DT, Done Right: Kit Contents, Crimping & Why They Don't Corrode

What a Deutsch connector kit includes, how the DT system actually works, and the crimping technique that makes waterproof connections last.

By Faye Donnelly · · 2 min read

The Deutsch DT is the connector that ended the automotive wiring argument: sealed, vibration-proof, field-serviceable without solder, and cheap enough to standardize on. Every off-road harness, ag machine, and serious trailer build converges on it for the same reasons.

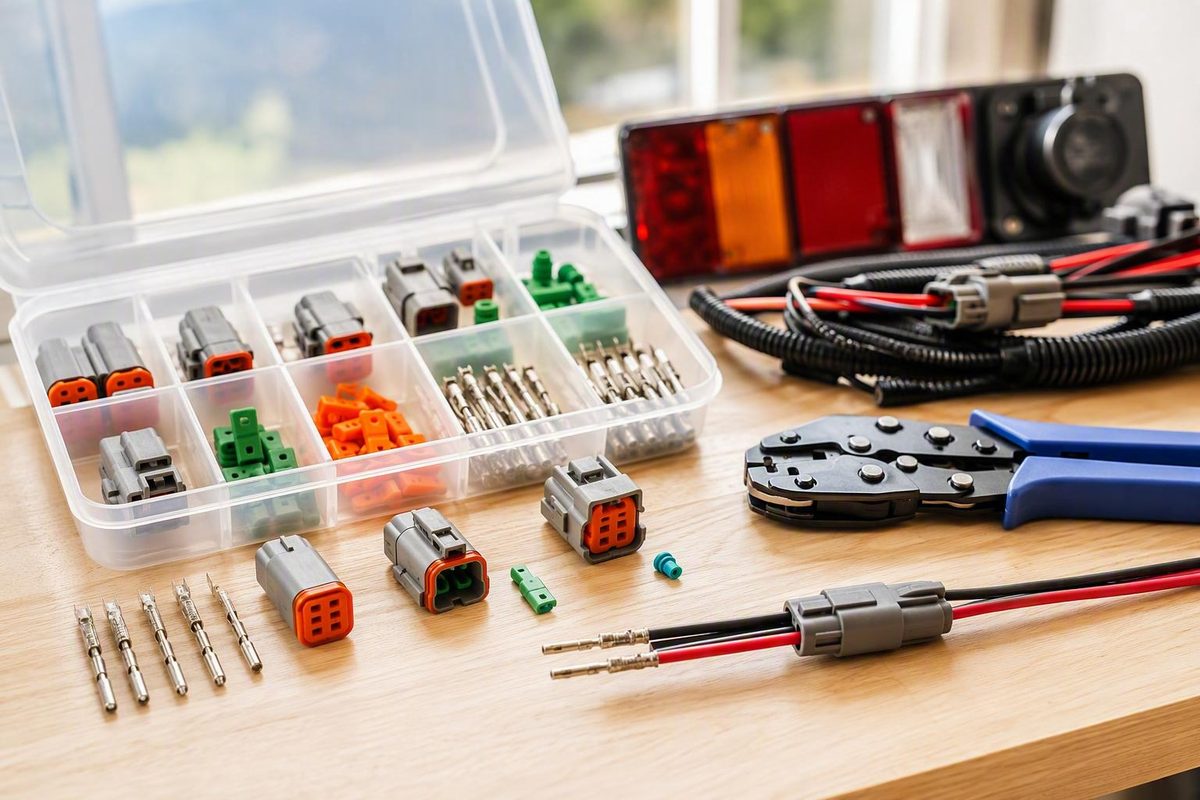

What’s actually in a kit

A proper DT kit contains plugs and receptacles (2 through 12 positions), wedgelocks (the orange or colored locks that seat behind contacts), solid contacts — stamped-and-formed contacts live in bargain kits; solid machined contacts are the ones worth owning — in size 16 (13–20 AWG, 13A), plus sealing plugs for unused cavities. The seals are built into the housings; there’s no glue, tape, or heat shrink in a correct DT joint.

The tool question decides everything: a 4-way indent crimper (HDT-48-00 style or a quality clone) makes the closed-barrel crimp these contacts require. Kits bundled with open-barrel pliers are selling you future intermittents.

The assembly, in order

  1. Strip to the contact’s window — about ¼”, no nicked strands.
  2. Crimp with the 4-indent tool, wire fully seated; a correct crimp shows four even dimples and survives a firm pull test.
  3. Push the contact into the rear of the housing until it clicks past the retention fingers — gently tug to confirm.
  4. Seat the wedgelock; it should click flush without force. A wedgelock that fights you means a contact isn’t fully home — fix it now, because the wedge is also your service access later (pick it out, release the fingers, contact slides back out).
  5. Fill empty cavities with sealing plugs — an open cavity is a snorkel for the whole connector.

Why they don’t corrode

The silicone rear grommet grips each wire’s insulation and the interface seal closes the mating faces — the contacts live in a sealed chamber rated for pressure-washing and submersion cycles. Which is also the system’s one commandment: match wire OD to the grommet (13–20 AWG insulation range). Undersized trailer-store wire in a DT grommet seals nothing, and the connector gets blamed for the wire’s sins.

Buy the real tool, buy solid contacts, and the DT repays you with the rarest thing in 12-volt wiring: connections you never think about again.
